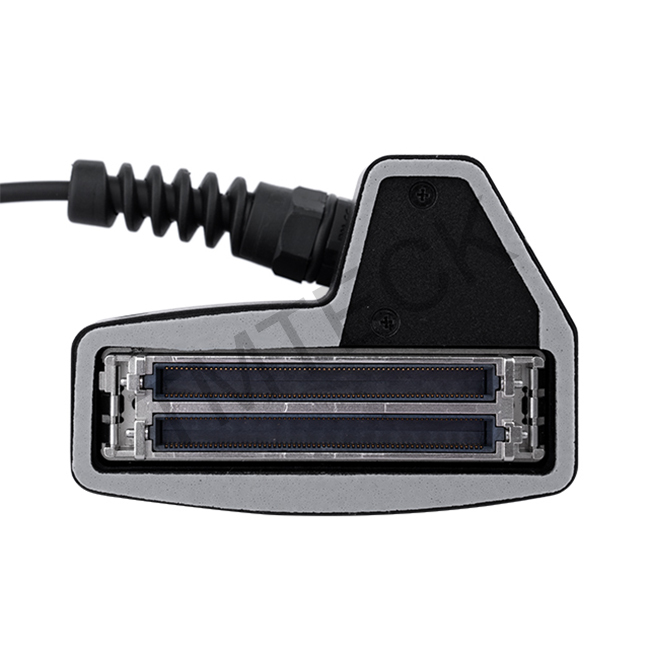

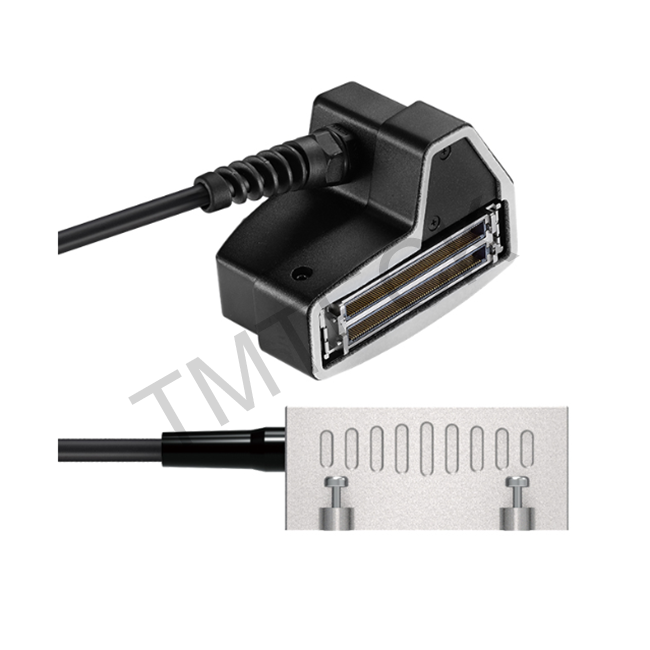

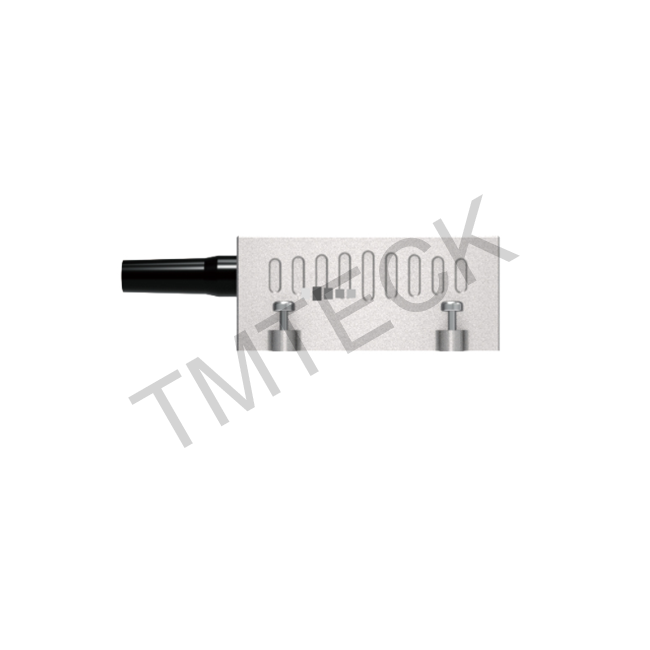

Pipe-Inspection Probes: large size and measuring range, used to complete oil, gas, electricity and other related pipeline inspection.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.The combination of s19 and s20 can automatically detect the girth weld, which is suitable for manual or automatic inspection of pipeline welds.
3. S20 is internal focus probe to optimize the signal to noise ratio
4.Good beam energy in the detection of small pipe/thin wall samples
5.Acoustic, can be matched with Rexolite, can complete most angles of sound beam
6.Can detect thick flat materials and welds, forgings, noise or granular materials
Application
1.Oil and gas: oil pipelines, bottles, tanks, etc.
2. Electricity: pressure vessels and pipelines, turbine blades, rotor monitoring, etc.
3.Other: testing of thick welds, pipe welds, etc.
Probe
Series |
Model |
Compatible
Model
|
Element
Shape |
Freq (MHz) |
E-Nos |
Pitch
(mm) |
Active
Aperture
(mm)
|
Elev.
(mm)
|
Size(LxWxH) |
| TS19/PWZ1 |
2.25L60-1.0x10 |
2.25L60-60x10 |
Linear |
2.25 |
60 |
1.00 |
60.0 |
10.0 |
68x26x30
(mm)
2.68x1.02x1.18
(in)
|
| 4L60-1.0x10 |
4L60-60x10 |
Linear |
4 |
60 |
1.00 |
60.0 |
10.0 |
| 5L60-1.0x10 |
5L60-60x10 |
Linear |
5 |
60 |
1.00 |
60.0 |
10.0 |
| 7.5L60-1.0x10 |
7.5L60-60x10 |
Linear |
7.5 |
60 |
1.00 |
60.0 |
10.0 |
| 10L120-0.5x10 |
10L120-60x10 |
Linear |
10 |
120 |
0.50 |
60.0 |
10.0 |
Specification
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Wedge Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Size(LxWxH) |
| TS19/PWZ1 |
N0L |
0°LW |
40°~70° |
68x26x30
(mm)
2.68x1.02x1.18
(in)
|
| N45L |
45°LW |
40°~70° |
| N55L |
55°LW |
40°~70° |
| N60L |
60°LW |
40°~70° |
| N55S |
55°SW |
40°~70° |
| N60S |
60°SW |
40°~70° |
| N70S |
70°SW |
40°~70° |
| N60S-IHC |
60°SW |
40°~70° |
| N60S-AOD100 |
60°SW |
40°~70° |
| N60S-IHC-AOD100 |
60°SW |
40°~70° |
Quick Details
Model Number:7.5L60-1.0x10-TS19/7.5L60-60x10-PWZ1
Element:60
Element Shape:Linear
Size:LxWxH 68x26x30(mm)2.68x1.02x1.18(in)
Application:Oil and gas: oil pipelines, bottles, tanks, etc.
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
